RV-CV01 campervan

Stock Location
Stock Availability
VIC Melbourne
Out of stock
NSW Sydney
In Stock
QLD Brisbane
Out of stock
NZ Auckland
Out of stock


Elevated expansion camp trailer

Overall dimension: 5760x2412x2470mm(body4m)

weight 2250kg

body material: insulation board

Chassis: hot galvanized

Double extension: manual uplift extension 500mm+back manual extension 500mm

Bracket system

trailer connector: 360’ off road dome cover, bearing 3000kgs

safety chain: safety chain MIC 4177-25 with typeD buckle marked on every 4 rings

Handbrake handle: car handbrake handle

Guide wheel: 10-inch,1500-pound top rocking guide wheel

Support legs: 4pcs support legs with 1200 pounds support force

Mudguard: black pattern aluminum+Iron skeleton

Cylinder holder: 2pcs 4.5kg cylinders, 2pcs oil jug

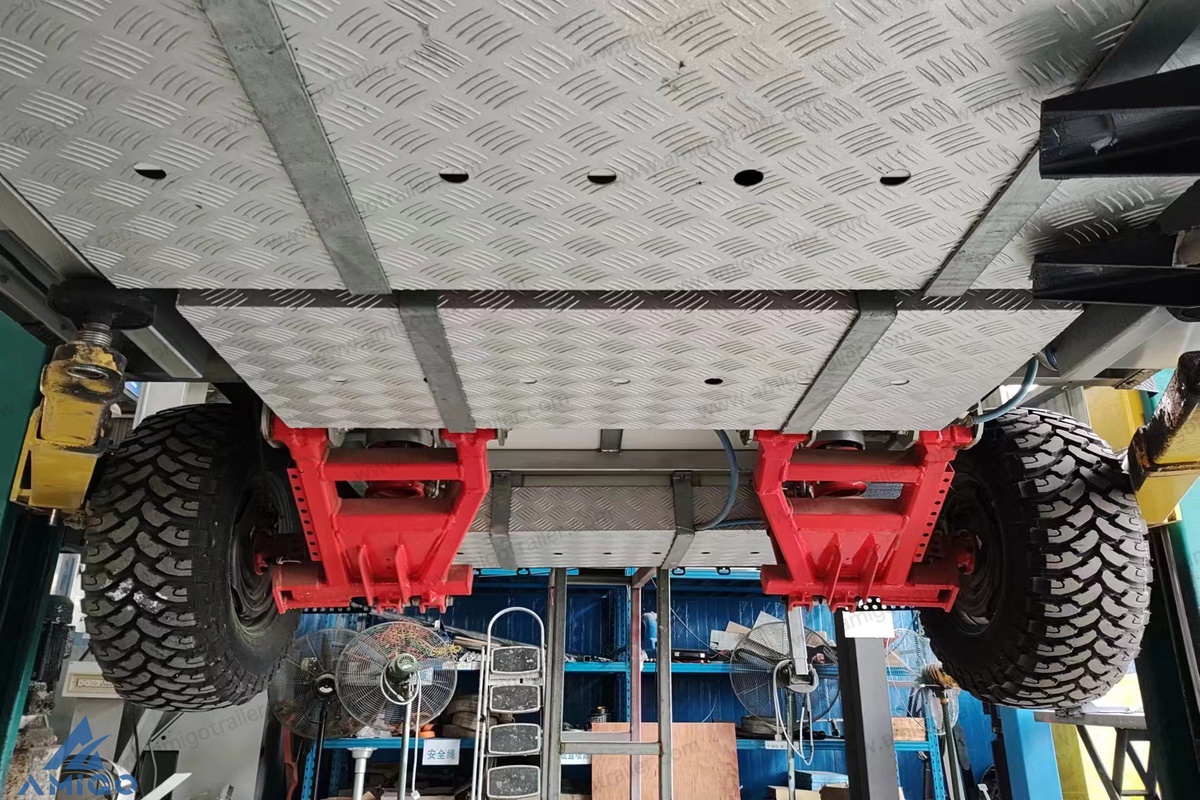

Chassis system

Off-road chassis system: body-chassis frame construction

Independent suspension system: 12 inch electromagnetic brake half shaft, spiral spring, shock absorber

Bidirectional damping: 480-100N red

Rim:4pcs aluminum alloy rim

Tyre:2pcs 265/75R16T  10PR off-road tyres. 2 pcs spare tyres


Wallboard: Sandwich structure, the outer glass plate, the inner glass plate, the middle aluminum skeleton filled with insulation material

Lower hem: 1.5mm aluminum textured panel, painted

Furniture: E-0 class lightweight paint-free board

King size bed: 2200x1900mm

Interior system

Sofa/single bed: 900x700mm(black leather)

Multi-function kitchen cabinet:sink 600x400mm+foldable water tap+foldable bench

Floor leather: wear-resistant floor leather

Double mattress:200mm mattress

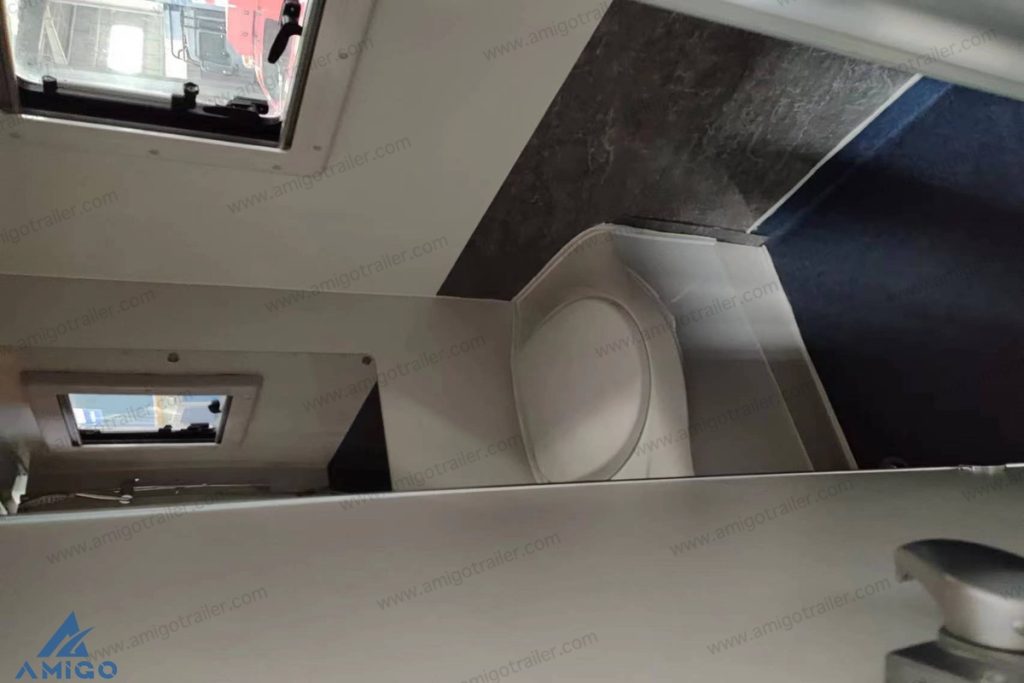

Body type toilet: Dometic C402-C

Ventilator:280x280mm DC12V

Bathing facilities: shower faucet

Water system

Tank volume: 95L+95L fresh water tank, 95L grey water tank(plastic),checked aluminum cover

120L water tank, 95L water tank, 95L plastic sewage tank, patterned aluminum guard plate

Water inlet: special gravity water inler for RV

External waterway: stainless steel faucet

Water pump:12V,10L/min(seaglo brand)

Kitchenware system

Sink, stove:304 stainless steel+sinks with drainage+360 degree rotary tap+3 burner stove with reinforced glass foldable cover(Brand Dometic)+stainelss steel foldable seasoning stand

Electrical system

Integrated Panel: master swich(50A).power voltmeter, water meter

Plug connector: large round socket and andson plug



Car socket:12V integrated USB socket, five-port sockets*3

Cigarette lighter:12V(located on-board door side,inside toolbox, inside kitchen panel)

Luminaires:Reflector(2pcs red,4pcs yellow,4pcs white)+2pcs front lamp+6pcs side lamp+2pcs tail lights(combination lamp)+1pcs license lights

Interior light: led lamp+hidden ambient light belt

Overhead air conditoner:Hongdu H2400

Bedside reading lamp:2pcs

Handle: side door handles with light

Water heater:Truma,gas-electric water heater

Solar panels: 18V,200W

Radio: Built-in 2 waterproof speakers, built-in radio with bluetooth.

Battery:2pcs lead-acid colloid battery, 12v/100ah

Mains charging socket:16A, 10m charging cable

Mains outlet:10A

Outdoor light:3pcs 12V waterproof LED outdoor lights

External configuration

Outdoor awning:Box type, manual, 3meter

Side door 1825x625mm

Push-out windiow:

1pcs 1100x450mm

1pcs 900x450mm

2pcs 520x480mm

Cabin door 2pcs 700x375mm

Wall-mounted table board:800x450mm

Accessory system

Big tool box :2pcs self-locking rail storage drawers

Small luggage rack: 2 self-locking rail storage drawer, tent pole box

Spare tire rack:Double spare tires with license plate an
